D5 Series

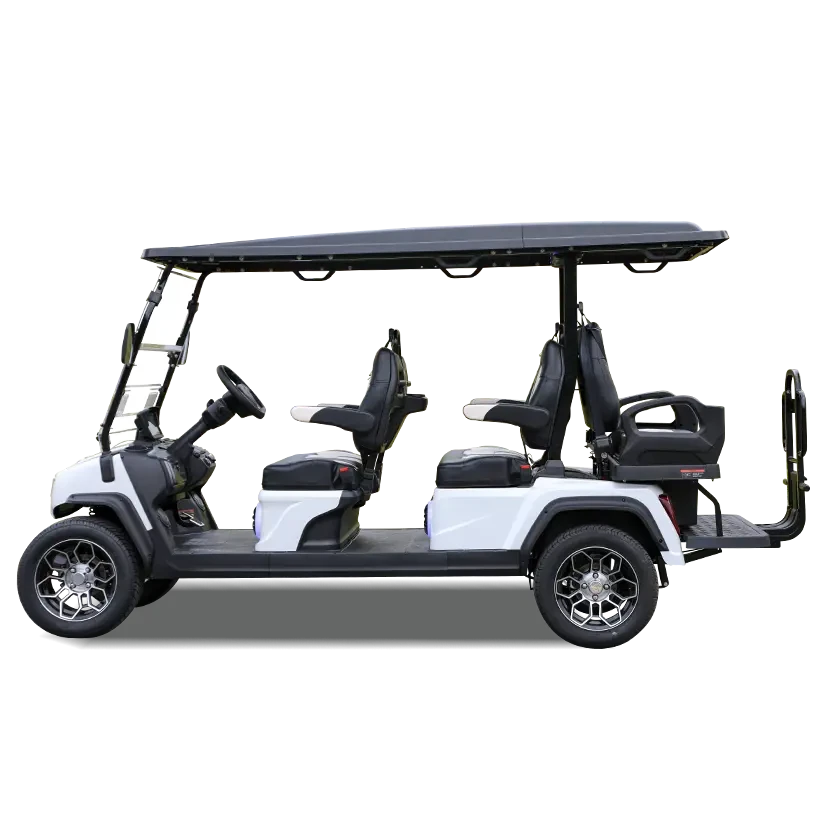

D5 Ranger 4+2 Plus

D5 Ranger 4+2 Plus - part of HDK D5 Series. Specs, range and MOQ. Request a factory quote.

ModelD5 Ranger 4+2 Plus

SeriesD5 Series

Released2026-10-19

Request a Quote → WhatsApp → Back to Series →

Color Options

Choose the color you like

FLAMENCO RED	PORTIMAO BLUE	ARCTIC GRAY
MINERAL WHITE	MEDITERRANEAN BLUE	BLACK SAPPHIRE

D5-RANGER 4+2

Full Specifications

DIMENSIONS

External Dimension	3820×1148(rearview mirror)×2045mm
Wheelbase	2470mm
Track Width (Front)	1020mm
Track Width (Rear)	1025mm
Braking Distance	≤3.3m
Min Turning Radius	5.2m
Curb Weight	558kg
Max Total Mass	1008kg

ENGINE/DRIVE TRAIN

System Voltage	48V
Motor Power	6.3kw with EM brake
Charging Time	4-5h
Controller	400A
Max Speed	30 km/h (19 mph)
Max Gradient (Full Load)	25%
Battery	48V Lithium Battery

GENERAL

Tire Size	225/55R14'' radial tires & 14''alloy rims
Seating Capacity	Six persons
Available Model Colors	Flamenco Red, Black Sapphire, Portimao Blue, Mineral White, Mediterranean Blue, Arctic Gray
Available Seat Colors	Black&Black, White&Black, Apple Red&Black, Blue&Black
SUSPENSION SYSTEM	Front: double wishbone independent suspension Rear: leaf spring suspension
USB	USB socket+12V powder outlet

Performance

Power, Space, and Adventure.

DASHBOARD

Your trusted golf cart is a reflection of who you are. Upgrades and modifications give personality and style to your vehicle. A golf cart dashboard adds beauty and functionality to your golf cart interior. The golf car accessories on dashboard are designed to improve the machine's aesthetics, comfort, and function.

LED LIGHT

Our personal transportation vehicles come standard with LED lights, including high/low beams, daytime running lights, turn signals, and brake lights. They offer more power with less battery drain and a 2-3 times wider field of vision than competitors, ensuring a worry-free ride even after the sun goes down.

SOUND BAR

The most important advantage is the compact size and what is included in that compact size. Equipped with sound bars and extra speakers, it connects wirelessly through the screen for effortless control. Adjustable lighting modes further enhance the experience, with speaker lights that pulse in sync with your music.

RADIAL TIRE

Discover the perfect balance of style and performance with our 14″ alloy wheel rims. Their flat tread protects the greens, while detailed siping channels water for superior traction, precise cornering, and reliable braking.

LUXURY SEAT

The seat back cover assembly adds comfort and practicality with handrails, cup holders, a storage pocket, and USB ports. Standard three-point safety belts ensure peace of mind, while 90° rotatable armrests provide ergonomic support for a safer, more enjoyable ride.

STORAGE COMPARTMENT

Extra easy-access storage compartment in the dashboard, providing a convenient and accessible storage compartment for your essential small items.

ADJUSTABLE STEERING COLUMN

D5 series vehicles feature adjustable steering column for a comfortable drive. The easy-to-use knob allows for quick adjustments, providing the ideal distance between steering wheel and driver for enhanced control, safety, and comfort for drivers of all body types.

ACCELERATOR BRAKE PEDAL

Driving becomes a seamless experience with our thoughtfully designed accelerator brake pedal. Increased legroom and optimal pedal placement allow for effortless transitioning between acceleration and braking, ensuring a smooth and controlled journey.
